东风康明斯100KW移动拖车电站






康明斯系列柴油发电机组是采用中美合资B/N/K系列发动机为引擎,其可靠性、经济性一直以来赢得部队、工程、工矿企业的信赖。康明斯公司创建于1919年2月,总部设在美国印第安纳州哥伦布市,康明斯在全球190多个国家和地区,500多加分销机构,服务网点遍布世界各地,为客户提供了可以信赖的服务保障。作为中国发动机行业最大的外国投资商,康明斯在中国拥有东风康明斯发动机有限公司(生产B/C/L系列)和重庆康明斯发动机有限公司(生产M/N/K系列)等制造企业。

Cummins diesel generator set is a sino-us joint B/N/K series engine, whose reliability and economy have always won the trust of the army, engineering and mining enterprises. Cummins company was established in February 1919, is headquartered in Columbus, indiana (USA), cummins in more than 190 countries and regions, 500 more distributors, service outlets all over the world, providing customers with reliable service. As engine industry's biggest foreign investors in China, cummins in China with dongfeng cummins engine co., LTD (produce B/C/L series) and chongqing cummins engine co., LTD. (M/N/K series), and other manufacturing enterprises.

机组型号输出功率KW输出功率KVA电流A柴油机型号缸数缸径*行程mm润滑油容量L油耗g/kw.g机组外形尺寸L×W×H机组重量kg
FM20GF2025364B3.9-G24102*120112081560*710*1080700
FM24GF243043.24B3.9-G24102*120112081620*710*1100710
FM30GF3037.5544BT3.9-G24102*120112081700*710*1110800
FM40GF4050724BTA3.9-G24102*120112101800*800*1200920
FM50GF5062.5904BTA3.9-G24102*120112101800*800*1200950
FM64GF6480115.24BTA3.9-G114102*120112101850*800*12001000
FM80GF801001446BT5.9-G26102*120162102200*800*12001250
FM100GF1001251806BTA5.9-G26102*120202072200*800*12001300
FM120GF1201502166BTAA5.9-G26102*120242072250*800*12001350
FM132GF132165237.56BTAA5.9-G126102*120242072300*820*13301350
FM150GF150187.52706CTA8.3-G26114*135242072300*820*13001600
FM180GF1802253246CTAA8.3-G26114*135242072500*1050*14801700
FM200GF2002503606LTAA8.9-G26114*145282072500*1050*15002000
FM220GF2202753966LTAA8.9-G36114*145282032500*1050*15002000
FM320GF3204005766ZTAA13-G36114*145282023200*1360*18003000
FM400GF4005007206ZTAA13-G46114*145282023200*1360*18003000
FM400GF400500720QSZ13-G26130*163282013300*1360*18003100
FM450GF450562.5810QSZ13-G36130*163282013300*1360*18003100
1.以上技术参数转速为1500RPM,频率50HZ,额定电压400/230V,功率因数0.8,接线方式为三相四线。
2.发电机可以根据客户需求,选用上海斯坦福、上海马拉松、无锡斯坦福等知名品牌。
3.60HZ发电机组可以根据客户的特殊需要定制。
4.本参数表仅供参考,如有更改恕不另行通知。
标准配置 Standard equipment:
发动机 diesel engine
发电机 alternator
散热器 water cooled radiator
工业消音器 、波纹管 industrial silencer and flexible exhaust hose
启动免维护蓄电池及蓄电池
电池连接线 maintenance-free lead-acid starting batteries and battery connect wires
输出断路器 output circuit breaker
智能控制屏 digital control panel
钢式底架 steel base frame
可选配置 Optional equipment
低噪音静音机箱 Low noise silent case
四轮移动拖车电站 Four-wheel mobile trailer power station
自启动、自转换
开关柜 Self - start, self - conversion switch cabinet
自动并机控制系统 automatic parallel operation control system
电热式水套加热器 electrothermal water jacket heater

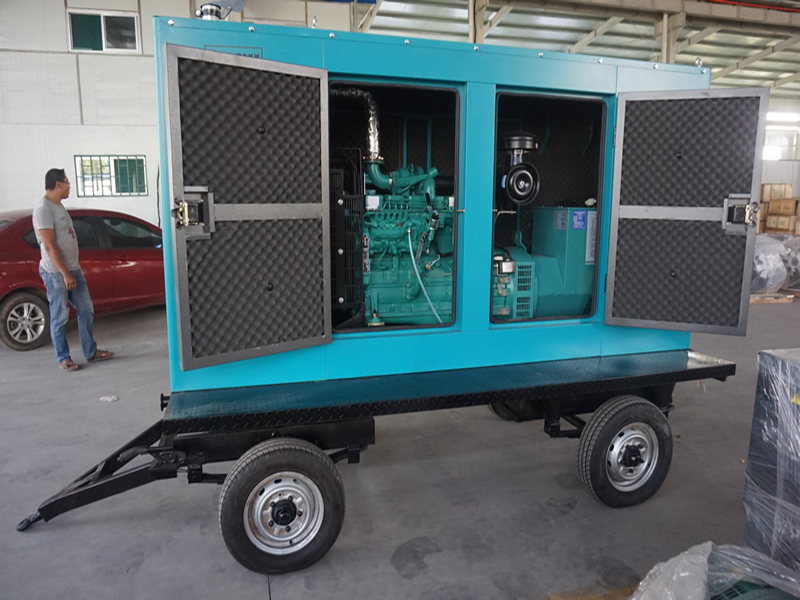

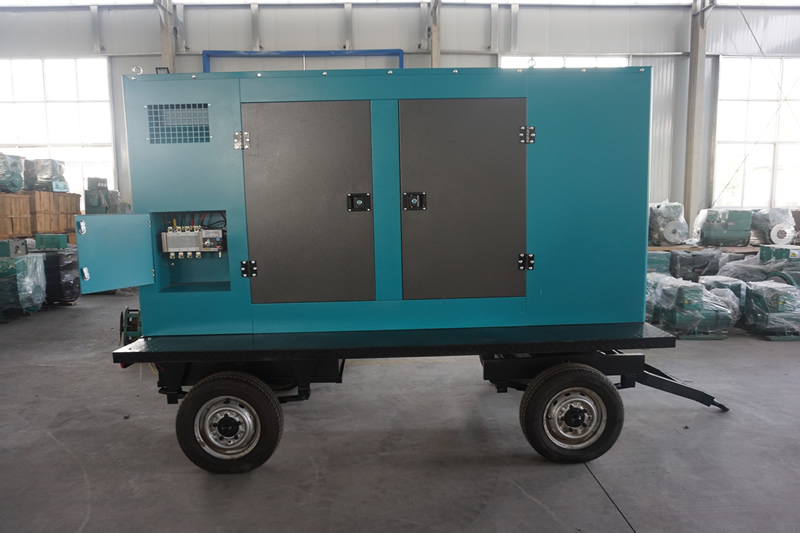

移动发电机组 Mobile generating set
移动柴油发电机组有多种结构和功能,有手推式、三轮、四轮、汽车电站、拖车电站、移动低噪音。移动集装箱电站等。该系统是我公司参照多国家移动电站结构,自行设计和生产的,具有良好的操作性能和安全性能。移动电站车架采用槽梁焊接成框架结构,节点选择合理、强度高、刚性好,同时装有钢板弹簧悬架结构,拖车采用高度可调节插销式牵引架,适用于各种高度牵引车,采用圆形钢管焊接直通式车轴,结构紧凑,安全可靠。
The mobile diesel generator set has many structures and functions,including push type, three wheel, four wheel, automobile power station, trailer power station and mobile low noise. Mobile container power station, etc. This system is designed and produced by our company according to the structure of multi-national mobile power station, and has good operation performance and safety performance. Mobile power station frame with groove beam welded frame structure, node selection is reasonable, high strength, good rigidity, equipped with leaf spring suspension structure at the same time, the trailer adopts height adjustable bolt type drawing frame, suitable for all kinds of tractor, USES the circular steel tube welding cut-through axle, compact structure, safe and reliable.

1、牵引:采用活动式挂钩,360°转盘、转向灵活、确保行驶中的安全。
Traction: the activity type, 360 ° rotating disc, flexible steering, to ensure the safety of driving.

2、制动:同时具有可靠的手摇式刹车系统和气刹接口,确保行驶中的安全性。
Braking: it also has reliable hand brake system and air brake interface to ensure the safety of driving.

3、支撑:为保证电源车操作时的稳定性,可选配4只机械或液压支撑装置。
Support: in order to ensure the stability of power vehicle operation, 4 mechanical or hydraulic support devices can be selected.

4、门窗:前部有通风窗,后部有对开大门,两侧有门可供操作人员操作。
Doors and Windows: there is a ventilation window in the front and a door in the back. There are doors on both sides for operators to operate.

5、照明:车厢内有吸顶防爆灯,右侧有工作台,并配有工作台灯,方便工作人员操作。
Lighting: there is an anti-explosion lamp on the top of the car and a  working table on the right.

6、防音:电源车的车箱、车内等全部用双层装饰,并装有吸音板消音,排气管用保温棉包裹,噪音最低可控制在72db以内。
Sound proof: the car box and the car of the power car are all decorated with double layers and equipped with sound absorbing board. The exhaust pipe is wrapped with insulation cotton, and the noise can be controlled within 72db at the minimum.

7、外部美观:油漆采用高分子聚氨酯油漆,颜色可有业主自定,排气管采用上排气,确保美观。
Exterior beautiful: paint USES high polymer polyurethane paint, color can have owner from decide, exhaust pipe USES on exhaust, ensure beautiful.

8、尺寸:车箱尺寸根据规格大小而定,操作人员可在四周行走,便于操作和维护。
Size: the size of the car box is determined according to the size of the specification. The operator can walk around, which is convenient for operation and maintenance.

9、消防:随车可选配消防灭火器两只。
Fire: the accessory optional two fire extinguishers.

东风康明斯100KW移动拖车电站 2018-9-30 本文被阅读 2865 次
