30KW移动式柴油发电机组

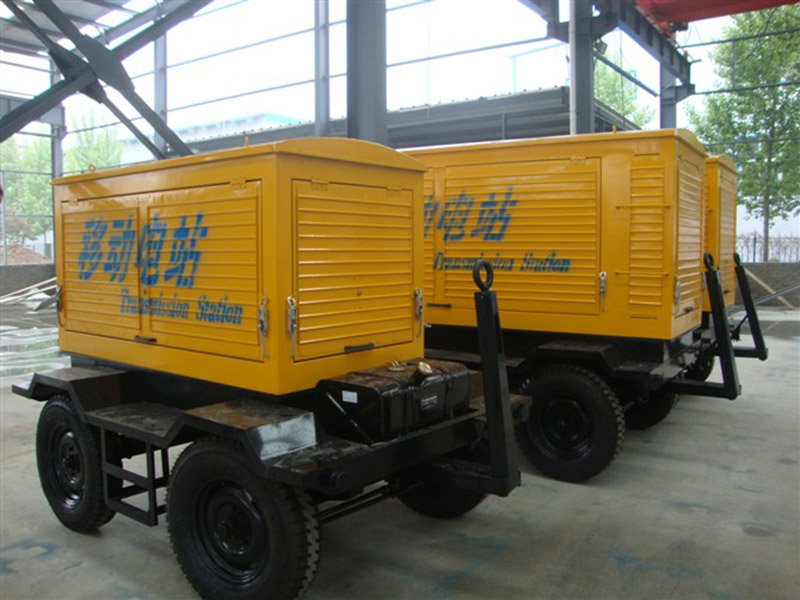

30KW移动式柴油发电机组

移动发电机组 Mobile generating set
移动柴油发电机组有多种结构和功能,有手推式、三轮、四轮、汽车电站、拖车电站、移动低噪音。移动集装箱电站等。该系统是我公司参照多国家移动电站结构,自行设计和生产的,具有良好的操作性能和安全性能。移动电站车架采用槽梁焊接成框架结构,节点选择合理、强度高、刚性好,同时装有钢板弹簧悬架结构,拖车采用高度可调节插销式牵引架,适用于各种高度牵引车,采用圆形钢管焊接直通式车轴,结构紧凑,安全可靠。
The mobile diesel generator set has many structures and functions,including push type, three wheel, four wheel, automobile power station, trailer power station and mobile low noise. Mobile container power station, etc. This system is designed and produced by our company according to the structure of multi-national mobile power station, and has good operation performance and safety performance. Mobile power station frame with groove beam welded frame structure, node selection is reasonable, high strength, good rigidity, equipped with leaf spring suspension structure at the same time, the trailer adopts height adjustable bolt type drawing frame, suitable for all kinds of tractor, USES the circular steel tube welding cut-through axle, compact structure, safe and reliable.

1、牵引:采用活动式挂钩,360°转盘、转向灵活、确保行驶中的安全。
Traction: the activity type, 360 ° rotating disc, flexible steering, to ensure the safety of driving.

2、制动:同时具有可靠的手摇式刹车系统和气刹接口,确保行驶中的安全性。
Braking: it also has reliable hand brake system and air brake interface to ensure the safety of driving.

3、支撑:为保证电源车操作时的稳定性,可选配4只机械或液压支撑装置。
Support: in order to ensure the stability of power vehicle operation, 4 mechanical or hydraulic support devices can be selected.

4、门窗:前部有通风窗,后部有对开大门,两侧有门可供操作人员操作。
Doors and Windows: there is a ventilation window in the front and a door in the back. There are doors on both sides for operators to operate.

5、照明:车厢内有吸顶防爆灯,右侧有工作台,并配有工作台灯,方便工作人员操作。
Lighting: there is an anti-explosion lamp on the top of the car and a  working table on the right.

6、防音:电源车的车箱、车内等全部用双层装饰,并装有吸音板消音,排气管用保温棉包裹,噪音最低可控制在72db以内。
Sound proof: the car box and the car of the power car are all decorated with double layers and equipped with sound absorbing board. The exhaust pipe is wrapped with insulation cotton, and the noise can be controlled within 72db at the minimum.

7、外部美观:油漆采用高分子聚氨酯油漆,颜色可有业主自定,排气管采用上排气,确保美观。
Exterior beautiful: paint USES high polymer polyurethane paint, color can have owner from decide, exhaust pipe USES on exhaust, ensure beautiful.

8、尺寸:车箱尺寸根据规格大小而定,操作人员可在四周行走,便于操作和维护。
Size: the size of the car box is determined according to the size of the specification. The operator can walk around, which is convenient for operation and maintenance.

9、消防:随车可选配消防灭火器两只。
Fire: the accessory optional two fire extinguishers.

30KW移动式柴油发电机组 2018-5-10 本文被阅读 4652 次
