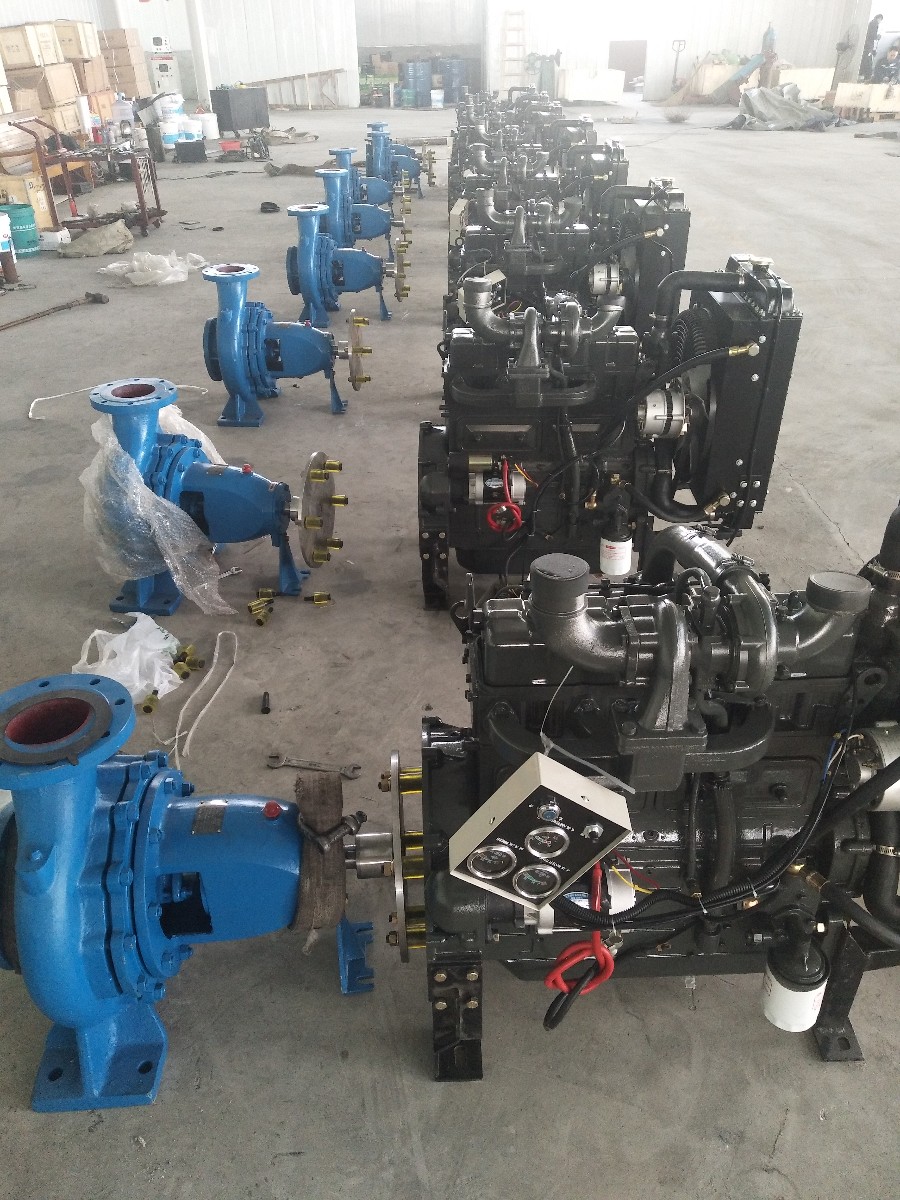

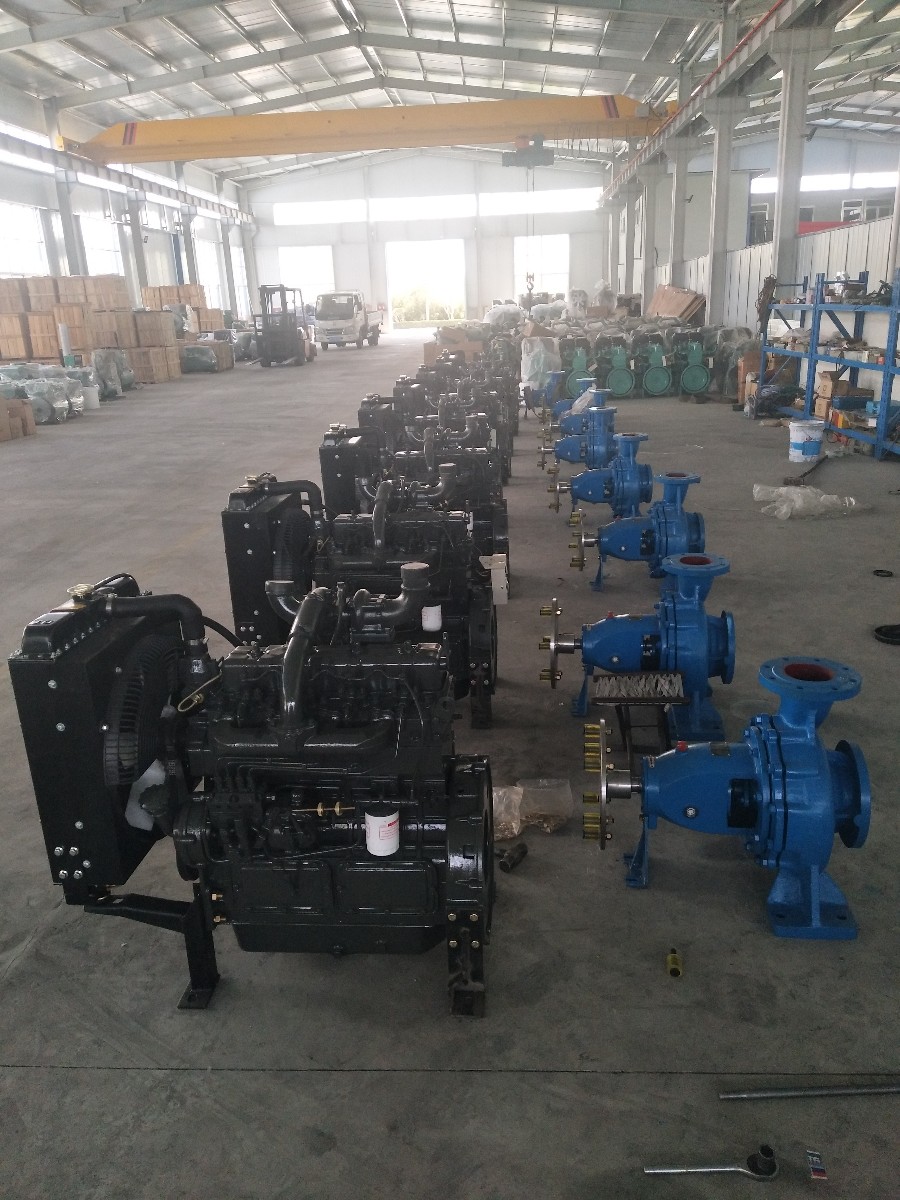

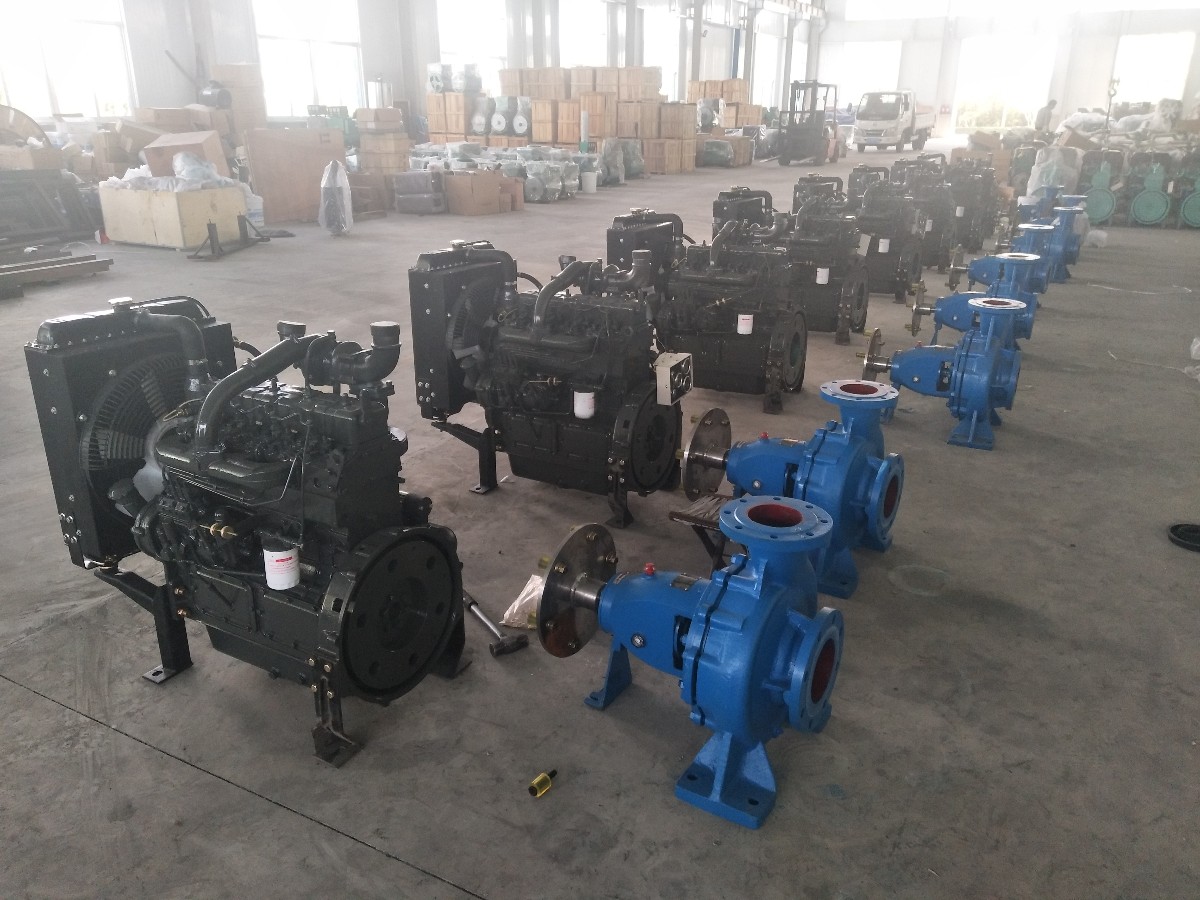

40KW柴油机水泵机组

40KW柴油机水泵机组

40KW柴油机水泵机组

40KW柴油机水泵机组

柴油机水泵Diesel pump

柴油机水泵泛指以柴油机为动力,泵组通过弹性联轴器由柴油机驱动,具有先进合理的结构,效率高,汽蚀性能好,振动小,噪声低,运行平稳、可靠和装拆方便等优点。
Diesel engine water pump to denote powered by diesel engines, pumps by elastic coupling driven by diesel engine, with advanced and reasonable structure, high efficiency, good cavitation performance, little vibration, low noise, smooth operation, reliable and convenient installation.

柴油机动力型驱动泵(或消防泵组)由卧式离心泵与柴油机、电器仪表等设备,安全紧密地安装在一公共底架上,通过控制线和信号线与电控箱相连。
Type power diesel engine driven pump (or fire pump group) by horizontal centrifugal pump and diesel engine, electrical instruments, such as equipment, installed in a public security closely chassis, through the line of control and signal lines connected to the electric cabinet.

用途use

1、用于消防备用主泵,称为XBC柴油机消防水泵;
Used for fire fighting standby main pump, called XBC diesel fire pump;

2、用于工业应急用途,如锅炉给水,高温给水等;
Used for industrial emergency use, such as boiler feed water, high temperature feed water, etc.

3、用于无电源地区农业灌溉,称ZCSB自吸无堵塞柴油机自吸泵。
ZCSB is used for agricultural irrigation in areas without power supply.

操作要求Operation requirements

在准备首次起动柴油机水泵时,检查所有设备的安装情况,按下列要求进行启动:
When preparing to start the diesel engine water pump for the first time, check the installation of all equipment and start the engine according to the following requirements:

从加油口向柴油机和水泵悬架内注入机油,并用油尺检查油位,符合要求高度;
Inject the engine oil into the diesel engine and pump suspension from the oil inlet and check the oil level with the oil gauge to meet the required height.

从膨胀水箱向柴油机内加入冷却水,水位到2/3膨胀水箱高为宜;
Add cooling water from the expansion tank to the diesel engine, and it is advisable to increase the water level to 2/3 of the expansion tank height.

在油箱内装入柴油,压动排气手压泵,让柴油通过过滤器进入机内;
Install diesel fuel in the fuel tank and press the exhaust manual pressure pump to let the diesel oil enter the machine through the filter.

连接水泵进出口管道及闸阀,关闭出水管路的闸阀,出口压力表和真空压力表;
Connect the inlet and outlet pipes and gate valves of the water pump, close the gate valves of the outlet pipes, the outlet pressure gauges and the vacuum pressure gauges;

向水泵及进水管灌水或真空引水,并排空内部空气;
Water is pumped or vacuumed into water pumps and inlet pipes, and the air inside is emptied.

打开外循环冷却水阀门;
Open the external circulating cooling water valve;

在进口阀门全开,出水阀门关闭情况下,起动柴油机水泵,当柴油机达到正常转速后再逐渐打开出水管路上的阀门,并调节到所需的工况。
At the inlet valve fully open, the water valve closed cases, starting diesel pumps, when the diesel engine reaches normal speed, then gradually open the valve outlet pipe road, and adjust to the desired operating mode.

40KW柴油机水泵机组 2018-5-28 本文被阅读 5169 次
