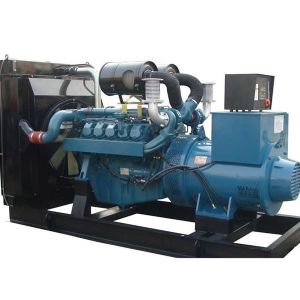

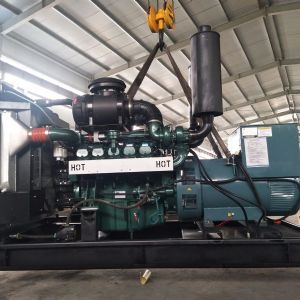

韩国斗山550KW柴油发电机组

韩国斗山550KW柴油发电机组

韩国斗山550KW柴油发电机组

斗山能提供10种常用和非常用的柴油发电机组的发动机,这10种型号的柴油发动机均满足美国EPA排气标准,其功率范围从35KW-649KW的发动机。在大气温度为40℃、高度1000M时能维持输出功率。热带地区用冷却系统,保证输出功率0-2%。低排放、低噪音。以最新的新技术喷射和空气压缩系统带来低内耗而保障优秀的燃烧性能和燃油消耗低。所有的发动机都符合美国EPA和CARB TIER排气标准。耐久性及低噪音,简便、迅速及经济安装的设计思想,提供平稳、无震动而噪音低的均衡设计。由于采用了活塞冷却系统,从而非常容易控制汽缸和燃烧室的工作温度。

Doosan provides engines for 10 common and very useful diesel generators, all of which meet U.S. EPA exhaust standards and have power ranges from 35kw-649kw engines. In the atmospheric temperature of 40 ℃, altitude 1000 m can maintain the output power. Cooling systems are used in the tropics to ensure output power of 0-2%. Low emission, low noise. With the latest technology jet and air compression system to bring low internal consumption and ensure excellent combustion performance and low fuel consumption. All engines meet the U.S. EPA and CARB TIER exhaust standards. Durability and low noise, simple, quick and economical installation design ideas to provide a smooth, vibration free and low noise balanced design. The piston cooling system makes it easy to control the operating temperature of the cylinder and combustion chamber.

机组型号输出功率KW输出功率KVA电流A柴油机型号缸数缸径*行程mm润滑油容量L油耗g/kw.g机组外形尺寸L×W×H机组重量kg
FM50GF5062.590DB586102*118152152000*730*1150900
FM64GF6480115.2D11466111*139182222200*800*15001100
FM75GF7593.75135D1146 6111*139182222200*800*15001100
FM100GF100125180D1146T6111*139182002300*800*15001500
FM120GF120150216DP086TA6111*139182012300*800*15001600
FM132GF132165237.6DP086TA6111*139182012300*800*15001600
FM150GF150187.5270P086TI-16111*139182072550*1000*15001750
FM180GF180225324P086TI6111*139182022600*1000*15001800
FM200GF200250360DP086LA6111*139202032700*1000*15001800
FM220GF220275396P126TI6123*155202052900*1050*16502400
FM240GF240300432P126TI6123*155202052900*1050*16502400
FM260GF260325468P126TI-Ⅱ6123*155252023000*1050*16502600
FM300GF300375540P158LE-18128*142332323100*1400*18502700
FM320GF320400576P158LE-18128*142332323100*1400*18502700
FM350GF350437.5630P158LE8128*142332093100*1400*18502800
FM400GF400500720DP158LCF8128*142352103120*1400*18503000
FM440GF440550792DP158LDF8128*142402053300*1400*18503300
FM500GF500625900DP180LAF10128*142452003400*1400*18503500
FM550GF550687.5990DP180LBF10128*142452073400*1400*18503700
FM600GF6007501080DP222LBF12128*142452103500*1400*18504000
FM650GF650812.51170DP222LCF12128*142502073600*1400*18504500
1.以上技术参数转速为1500RPM,频率50HZ,额定电压400/230V,功率因数0.8,接线方式为三相四线。
2.发电机可以根据客户需求,选用上海斯坦福、上海马拉松、无锡斯坦福等知名品牌。
3.60HZ发电机组可以根据客户的特殊需要定制。
4.本参数表仅供参考,如有更改恕不另行通知。
标准配置 Standard equipment:
发动机 diesel engine
发电机 alternator
散热器 water cooled radiator
工业消音器 、波纹管 industrial silencer and flexible exhaust hose
启动免维护蓄电池及蓄电池
电池连接线 maintenance-free lead-acid starting batteries and battery connect wires
输出断路器 output circuit breaker
智能控制屏 digital control panel
钢式底架 steel base frame
可选配置 Optional equipment
低噪音静音机箱 Low noise silent case
四轮移动拖车电站 Four-wheel mobile trailer power station
自启动、自转换
开关柜 Self - start, self - conversion switch cabinet
自动并机控制系统 automatic parallel operation control system
电热式水套加热器 electrothermal water jacket heater
